Sending Cases to a Planmeca Preferred Lab...

Sending cases to a Planmeca Preferred Lab is easy! Follow the simple steps below to get the case and information to them!

SENDING VIA PLANMECA ROMEXIS 4.4.2
  1. Open Planmeca Romexis.
  2. Select the desired patient in Patient Management.
  3. Open the CAD/CAM module.
  4. Select the case in the Patient’s Case Files.
  5. Choose Export 3D Models option.

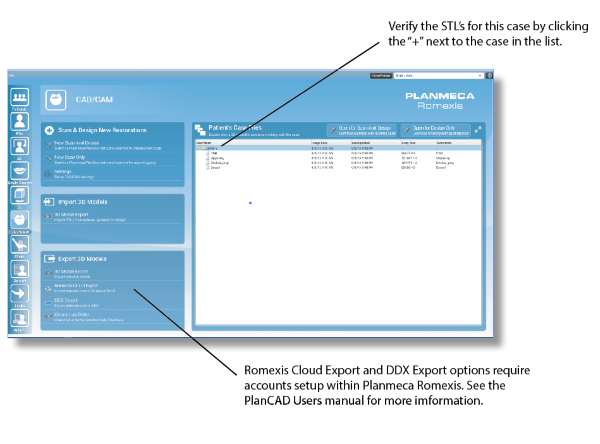

Romexis Tutorial

SENDING VIA LAB PORTAL

Some labs may have their own secure portal to receive files. In these instances you’ll export the data to the desk-top, open your internet browser, and upload the files. Here’s exactly what to do in Planmeca Romexis, you’ll have contact your lab for more information about thier portal.

  1. After Preparing to Send (decribed on other side), click 3D Model Export in the Export 3D Models section of the PlanCAD module.
  2. In the open window, navigate to the desired location to save the files. In most cases the Desktop will be the easiest location to locate them after saving.
  3. Select the file type in Files of Type drop-down menu, based on your labs preferences.
  4. Click Export to save the files in that location.
  5. Open the internet browswer window and proceed with the instructions provided by your lab.
SENDING VIA ROMEXIS CLOUD EXPORT

If you have a paid subscription to Romexis Cloud, sending cases to anyone is easy! Go to http://online.planmeca.com to subscribe and learn more.

  1. After Preparing to Send (decribed on other side), click Romexis Cloud Export in the Export 3D Models section of the PlanCAD module.
  2. In the open window, enter the email address of the receipient. Choose Select Contact for previously sent addresses.
  3. Enter a Case Description, if desired.
  4. Choose the CAD/CAM Case Format to send to the lab, based on their preferences.
  5. Choose to send link via e-mail and include the Romexis Viewer when needed.
  6. Click Send.
SENDING VIA DDX EXPORT

Sending cases via the Digital Dental Exchange is the next step in case management. Integrations with Dentrix and secure AES encryption makes for a secure and reliable source of data transfer. To learn more or signup, go to http://ddxdental.com/practices.

  1. After Preparing to Send (decribed on other side), click DDX Export in the Export 3D Models section of the PlanCAD module.
  2. In the open window, click Create A New Case.
  3. Login to DDX (if this is your first time).
  4. Select the preferred lab or use the FInd A Lab option.
  5. Click Use Lab.
  6. Complete the online lab script as defined by your lab.
  7. Click Submit Case.
  8. Enter any additional infomration about the case and close the browser window.
  9. In the open window, select the file type to send to the lab, then click Add File(s).
  10. Wait for the upload to complete and the DDX Cloud window to close.
