Dental programs
| Volume size (child mode) |
Voxel size, isotropic | |
| Tooth | Ø50 x 80 mm (Ø42 x 68 mm) Ø50 x 50 mm (Ø42 x 42 mm) |
75 µm*, 100 µm, 150 µm, 200 µm, 400 µm |
| Teeth | Ø80 x 50 mm (Ø68 x 42 mm) |
150 µm, 200 µm, 400 µm |
| Double scan | 2x Ø50 x 80 mm ≈ 70 x 60 x 80 mm 2x Ø80 x 50 mm ≈ 110 x 100 x 50 mm |
200 µm, 400 µm |
| Triple scan | 3x Ø50 x 80 mm ≈ 90 x 60 x 80 mm 3x Ø80 x 50 mm ≈ 150 x 100 x 50 mm |
200 µm, 400 µm |
*Requires Endodontic imaging license, only for the smallest volume
Technical data
| Anode voltage | 54–90 kV | |
| Anode current | 1–14 mA | |
| Focal spot | 0.5 mm, fixed anode | |
| Image detector | Flat panel | |
| Image acquisition | Single 200 degree rotation | |
| Scan time | 7.5–27 s | |
| Reconstruction time | 2–25 s | |
Physical space requirements
| 3D s or 3D Classic | 3D s or 3D Classic with cephalostat | |
| Width | 115 cm (44 in.) | 200 cm (79 in.) |
| Depth | 125 cm (49 in.) | 125 cm (49 in.) |
| Height** | 153–243 cm (60–96 in.) | 153–243 cm (60–96 in.) |
| Weight | 113 kg (lbs 248) | 128 kg (lbs 282) |
Minimum operational space requirements
| 3D s or 3D Classic | 3D s or 3D Classic with cephalostat | |
| Width | 150 cm (59 in.) | 215 cm (85 in.) |
| Depth | 163 cm (64 in.) | 163 cm (64 in.) |
| Height** | 243 cm (96 in.) | 243 cm (96 in.) |
**The maximum height of the unit can be adjusted for offices with limited ceiling space.

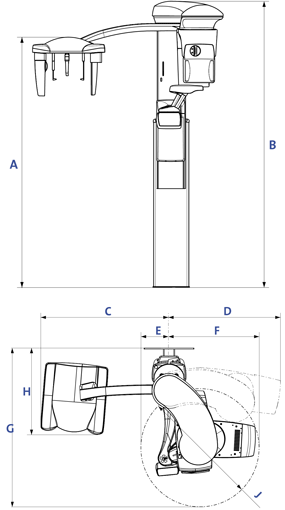

Dimensions
| 3D s or 3D Classic | ||
| A | 1298–2123 mm (51.1–83.5 in.) | |
| B | 1560–2385 mm (61.4–93.8 in.) | |
| C | 1145 mm (45.1 in.) | |
| D | 850 mm (33.5 in.) | |
| E | 270 mm (10.6 in.) | |
| F | 698 mm (27.5 in.) | |
| G | 1250 mm (49.2 in.) | |
| H | 777 mm (30.6 in.) | |
| J | Ø820 mm (32.3 in.) | |
Example installation
| Included in delivery | Planmeca ProMax 3D unit with 3D reconstruction server | ||
| Minimum set up | Client workstation and database server • Planmeca Romexis 3D Explorer • Database server • Planmeca Romexis Image Database The client workstation and database server can also be in separate computers. |
||
| Additional equipment | Additional diagnostic workstations with different software configurations Planmeca Romexis tools: • 3D Explorer • 3D Cross Sections module • 3D TMJ module • 3D Implant Planning module • DICOM module |
||
Planmeca ProMax® 3D family
Discover also the other innovative products in the Planmeca ProMax® 3D family and find the perfect unit for your imaging needs.
Comparison
| 3D s | 3D Classic | 3D Plus | 3D Mid | 3D Max | ||
| 3D Dental programs | Yes | Yes | Yes | Yes | Yes | |
| 3D ENT programs | - | - | Yes | Yes | Yes | |
| ProFace 3D face photo | Yes | Yes | Yes | Yes | Yes | |
| 3D Models scan | Yes | Yes | Yes | Yes | Yes | |
| Suresmile certification | - | Yes | - | Yes | Yes | |
| 4D jaw motion | - | - | - | Yes | Yes | |
| 2D panoramic imaging | Yes | Yes | Yes | Yes | Yes | |
| 2D cephalometric imaging | Yes | Yes | Yes | Yes | - | |
